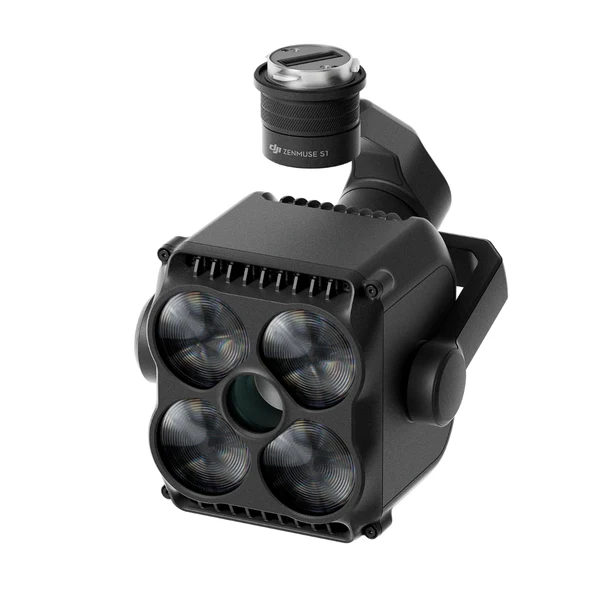

DJI Zenmuse S1 Spotlight

DJI Zenmuse S1 Spotlight

Illuminate vast scenes from the sky with the DJI Zenmuse S1-the first LEP spotlight for Matrice 400, 350 RTK and 300 RTK drones.

Offering four adaptive beam modes, a 500 m maximum throw, and energy‑savvy 17 W consumption, S1 delivers high‑contrast visuals that transform night into day for public‑safety, rescue, and inspection crews.

An IP54 shell, -20 °C – 40 °C operating window, and quick‑mount 0.76 kg design ensure reliability with minimal payload load.

Key Features

• Low Beam (15 ° FOV / 150 m) for close‑range searches; High Beam LEP (4 ° FOV / 300 m) for long‑range focus
• Dual‑beam “Both On” mode pushes visibility out to 500 m; Strobe mode grabs attention for signaling
• 35 lux center brightness at 100 m with only 17 W draw in High Beam
• Multiple safeguards: temperature, overcurrent, power, burn, and auto‑dimming eye protection
• IP54 dust‑ and water‑resistance with operational temps from -20 °C to 40 °C
• One‑press RC shortcuts for brightness, on/off, and mode cycling; Mobile SDK for custom workflows
• Mounts on single/down or up gimbals without tools, keeping setup swift on‑scene

Applications

• Wide‑area law‑enforcement and crowd‑control lighting
• Search‑and‑rescue illumination and emergency signaling
• Night inspection of bridges, towers, and power‑lines
• Construction‑site security and progress imaging
• Wildlife monitoring and environmental surveying after sunset

Integrate the Zenmuse S1 Spotlight into your night‑flight toolkit to improve your nighttime operations.

Specifications

• Weight: 760±10 g
• Dimensions: 125×152×171 mm (L×W×H)
• Rated Power: 68 W
• Supported Aircraft: Matrice 300 RTK (requires DJI RC Plus), Matrice 300 RTK, Matrice 400
• Eye Safety Class: IEC 62471: Risk Group 1
• Shell Temperature: <50° C (122° F, plastic shell)
• Ingress Protection Rating: IP54
• Operating Temperature: -20° to 40° C (-4° to 104° F)
• Storage Temperature: -20° to 60° C (-4° to 140° F)
• Stabilization System: 3-axis (tilt, roll, pan)
• Angular Vibration Range: Hover: ±0.01°, Flight: ±0.02°
• Mounting: Detachable DJI SkyPort
• Mechanical Range: Tilt: -129° to +73°, Roll: ±55.8°, Pan: ±327°
• Controllable Range: Tilt: -120° to +60°, Pan: ±320°
• Operation Mode: Follow / Free / Re-center
• Maximum Central Illuminance: 35 lux @ 100 m (Both On mode)
• Low Beam Central Illuminance: 13 lux @ 100 m (Low Beam mode)
• High Beam Central Illuminance: 30 lux @ 100 m (High Beam mode)
• Effective Illumination Angle: 15±1° (Low Beam & Both On mode), 4±0.5° (High Beam mode)
• Typical Color Temperature: 6500 K typical (Low Beam mode), 7500 K typical (High Beam mode)
• Dimming Mode: Analog dimming
• Effective Illumination Distance: 500 m (Both On mode)
• Lighting Control: Turning light on/off, brightness adjustment
• Strobe Mode: 5 Hz strobe
• Lighting Mode: Low Beam mode, High Beam mode, Both On mode
• Remote Controller Buttons: Assignable for light on/off, brightness adjustment, or mode switching
• Gimbal Synchronization: Supports synchronized control with other gimbal-equipped payloads
• Eye Protection: Automatically limits brightness to 40% when not in flight
• Payload Protection: LED and LEP temperature protection, overcurrent protection, and power protection to prevent damage

In The Box

• 1x Zenmuse S1 Spotlight Payload
• 1x Gimbal Port Protection Cap
• 1x Storage Box
• 1x Lens Protection Rubber Cap
• 1x Lens Cleaning Cloth
• 1x Manuals
