DJI D-RTK 3 Multifunctional Station (Base Only)

Achieve Precision and Range with the DJI D-RTK 3 Multifunctional Station

The DJI D-RTK 3 Multifunctional Station is a cutting-edge positioning tool designed for professional drone operators. Equipped with high-performance antennas, GNSS modules, and an inertial measurement unit, it offers unparalleled precision and versatility. Whether used as a base station for centimeter-level positioning, a relay station to extend operational range, or a rover station for aerial surveying, this device empowers your DJI Matrice 4 Series drones to achieve exceptional accuracy and functionality.

Key Features and Benefits

• Unmatched Precision: Delivers centimeter-level accuracy in base station mode for professional-grade results.
• Versatile Modes:
  • Base Station Mode: Provides high-precision positioning for multiple drones at once.
  • Relay Station Mode: Extends drone range up to 15 km (FCC standard), ideal for large-scale missions.
  • Rover Station Mode: Integrates with DJI ENTERPRISE app and DJI Terra for streamlined surveying workflows.
• Global GNSS Compatibility: Supports GPS, GLONASS, Galileo, BDS, and QZSS systems for robust performance in diverse environments.
• Integrated Inertial Measurement Unit: Ensures accurate orientation and positioning even under intense vibrations or rotations.
• Rugged and Reliable: IP67-rated construction resists water and dust, suitable for challenging outdoor environments.
• Compact and Lightweight: Weighs only 1.26 kg for easy portability and deployment.

Applications Across Industries

The DJI D-RTK 3 Multifunctional Station is essential for:

• Surveying and Mapping: Deliver high-accuracy geospatial data with streamlined workflows.
• Agriculture and Land Use: Enable precise field analysis and optimize agricultural practices.
• Infrastructure and Utilities: Conduct detailed inspections of critical assets with confidence.
• Search and Rescue Missions: Extend operational range and improve positioning in emergency scenarios.

Why Buy from Dronefly?

• Trusted Expertise: Rely on our knowledgeable team for tailored advice and support.
• Authentic DJI Accessories: 100% genuine products for guaranteed performance and compatibility.
• Exceptional Service: Comprehensive pre- and post-purchase support to maximize your investment.
• Quick Delivery: Fast shipping to keep your operations on schedule.

Empower your drone operations with the DJI D-RTK 3 Multifunctional Station from Dronefly. Achieve precision, reliability, and seamless integration for every mission.

Specifications

• GNSS Frequency:
  • GPS: L1C/A, L2C, L5
  • BDS: B1I, B2I, B3I, B1C, B2a, B2b
  • Galileo: E1, E5a, E5b, E6
  • GLONASS: L1, L2
  • QZSS: L1C/A, L2C, L5
  • L-Band: Supported
• Rover Station Mode Accuracy:
  • Static Measurement:
    • Horizontal: 0.8 cm + 1 ppm (RMS)
    • Vertical: 1.5 cm + 1 ppm (RMS)
  • Tilt Measurement:
    • Angle Range: 0° to 60°
    • Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
• Max Transmission Distance (in Relay Station Mode, unobstructed, free of interference):
  • FCC: 15 km between the aircraft and the relay station, 1 km between the relay station and the remote controller
  • SRRC: 12 km between the aircraft and the relay station, 1 km between the relay station and the remote controller
  • CE: 8 km between the aircraft and the relay station, 300 m between the relay station and the remote controller
• Protection Rating: IP67 (station only)
• Diameter: 163 × 89 mm (without OcuSync Directional Antennas)
• Weight: 1.26 kg

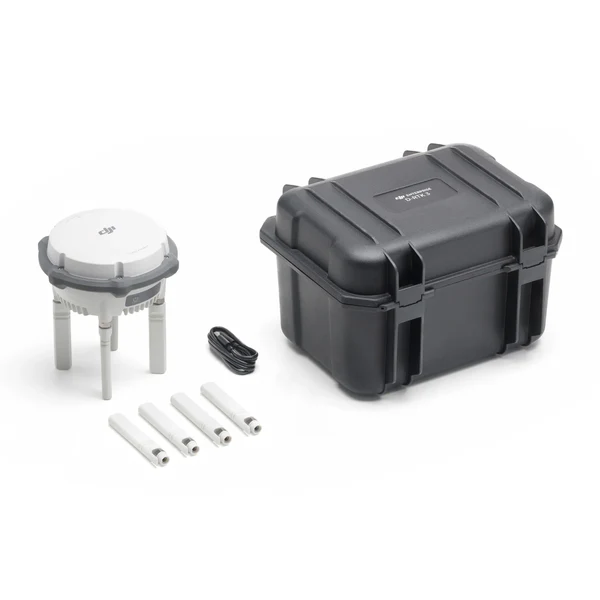

In the Box

• 1x D-RTK 3 Multifunctional Station
• 4x Spare OcuSync Directional Antennas
• 1x USB-A to USB-C Cable
