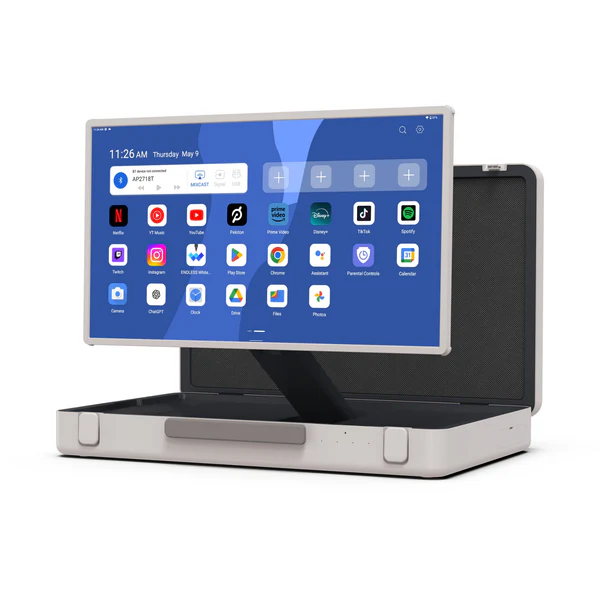

27″ Mobile Display Suitcase

Elevate your UAV workflow with the 27″ Mobile Display Suitcase, a portable solution designed for professionals who demand precision and reliability. This 27″ touchscreen monitor features an impressive 1000:1 contrast ratio, delivering vibrant and detailed visuals for real-time flight monitoring, aerial footage analysis, and mission-critical planning. Its rugged suitcase design ensures maximum portability, making it perfect for field operations and mobile setups.

Equipped with versatile input options—including Type-C, USB, HDMI, and DisplayPort—it seamlessly connects to drones, ground control systems, and other devices. Powered by Android 12, with 8GB of RAM and 128GB of storage, it provides robust multitasking capabilities to handle advanced UAV software applications. Supported by a 1-year warranty, online technical assistance, and a dedicated call center, the 27″ Mobile Display Suitcase ensures a hassle-free and reliable experience. Ideal for UAV operators seeking exceptional performance and portability.

Specifications

Display

• • Diagonal Size: 27-inch
  • Screen Type: IPS
  • Resolution: 1920 x 1080 pixels
  • Number of Colors: 16.7M Colors
  • Color Gamut: 72% NTSC
  • Viewing Angle: R/L 89/89, U/D 89/89
  • Display Mode: Normally black
  • Contrast Ratio: 1000:1
  • Response time (GtG): 6ms
  • Backlight: LED
  • Luminance: 450 nits
  • Aspect Ratio: 16:9
  • Touchscreen Type: In-cell touch
  • Number of Points: 10-point
  • Interface for Touch: HID-USB

Processor

• • CPU: RK3588 Quad-core cortex A55 + Quad-core cortex A76
  • RAM: 8GB
  • ROM: 128GB
  • Operating System: Android 12

Size and Weight

• • Dimensions: 669 × 420 × 115.3 mm (L × W × H)
  • Shipping Box Dimensions: 765 × 568 × 180 mm (L × W × H)
  • Weight (Unpackaged): 13.8 kg
  • Weight (Packaged): 16.1 kg

Power and Battery

• • Battery Type: 18650 rechargeable lithium-ion battery
  • Battery Capacity: 14.4V/ 6800mAh
  • Battery Life: 5-6 hours

Wireless

• • WiFi: IEEE 802.11b/g/n/a/ac/ax
  • Bluetooth: Bluetooth 5.2

I/O Ports

• • USB Type-C: Full Function (Except for charging function)
  • DP in: DP IN function, Compatible with PD fast charge output, support 5V/3A, 9V/3A, 12V/3A, 15/3A output
  • USB-A: USB 3.0 HOST
  • HDMI: Support 800*600, 1024*768, 1280*720, 1280*800, 1280*1024, 1366*768, 1600*900, 1920*1080, 3840*2160, etc
  • AC Power Input: Socket, AC voltage 100-240V input
  • Rocker Switch: Control the motherboard battery switch
  • Storage Box: ×3

Media Format

• • Video Format: MPEG-1, MPEG-2, MPEG-4, H.265, H.264, H.263, VC-1, VP8, VP9, MVC, AV1, etc., support up to 8K@60fps
  • Audio Format: MP3/WMA/AAC/WAV/OGG, etc
  • Photo: JPEG/PNG/GIF, etc

Others

• • Color: Warm Grey
  • Button: Power/Volume+/Volume-
  • Gravity Sensor: Supports 90° rotation
  • Speaker: Tweeter 0.75inch 4Ω/10W*2, woofer 2.5inch 4Ω/10W*2
  • Microphone: Standard built-in 4 microphones, supporting noise reduction and echo cancellation
  • OSD Language: Multilingual OSD operation in Chinese and English
  • Closure Dormancy: Supports lid closure sleep, lid opening wake-up/lid opening startup
  • LED light (front):
    • Blue light: Battery level > 15%
    • Green light: Flashing during AC charging, always on when fully charged
    • Red light: Battery level ≤ 15%
    • Turn off the lights: Shutdown and hibernation
  • Tilt: For Landscape Mode: Forward tilt 3°, backward tilt 90°; For Portrait Mode: Forward tilt 3 degrees, backward tilt 40°
  • Rotation: 0-90°
  • Height: 200mm
  • Operation Temperature: 0℃-45℃
  • Storage Temperature: -20℃-60℃
  • Operation Humidity: 20~80%RH
  • Storage Humidity: 10~95%RH

In The Box

• 1x 27″ Mobile Display Suitcase
• 1x 1.5 meters AC Cable
• 1x 0.8 meters Bluetooth Remote Control
• 1x USB-C Cable
• 1x User Manual
